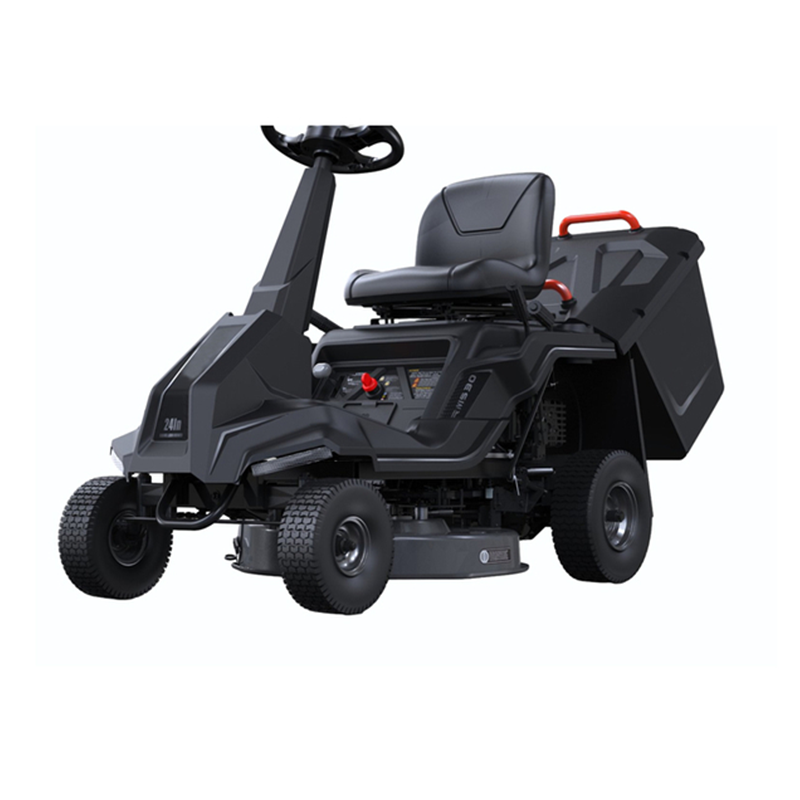

| Model# | DRM24E－D224 |
| Overall Design | |
| Net Weight (kg) | 115±2KG |
| Gross Weight (kg) | 125±2KG |
| Assembled Length X Height XWidth (mm) | 1820*740*1090 |
| Drive Type | Rear-wheel Drive |
| Turning Radius (in.) | 18 |
| Frame | Steel tubing, welded and powder coated |
| ENGINE | |
| Displacement (cc) | 224cc |
| Engine Model | DV225 |
| Starting System (Recoil/ES/Auto choke): | Recoil/E-start |
| Power MAX(kw) | 4.4KW |
| Rated speed | 2800 rpm |
| Driving System | |
| Forward Speed (km/h) | 1.5/2.0/4.0/6.0Km/h |
| Maximum Reverse Speed ((km/h) | 2.4Km/h |
| Tires | 4-ply tubeless |
| Front Wheel Size (in.) | 10*400-4 |
| Rear Wheel Size (in.) | 13*500-6 |
| Cutting System | |
| Cutting Width | 24" |
| Number of Blades | 1.00 |
| Blade speed(rpm) | Max 2700 |
| Blade brake | Yes |
| Catcher capacity(L) | 150L |
| Cutting heights(mm) | 35-75mm ±5mm with 5 grades |
| Height adjustment | Manual |
| Cutting Options | Mulch, side-discharge, |
| Other features | |
| Lithium Battery voltage | 20V |
| Battery capacity | 2Ah |
| Charger voltage (v) and charging current (A) | 21.8/0.6 |
| Charger time (h) | 4.7 hours |
| Seat | Adjustable，integrated switch |
| Iron Stand Size (mm) | 1480*760*865 |
| 20GP(PCS) | 20 |
| 40GP(PCS) | 40 |
| 40HQ(PCS) | 72 |
